How BPEL Gets Execute

By default  BPEL will create a new transaction on request basis - that is if one already exists, it will be suspended, and a new one created. Upon completion of the child, the master one resumes.


However, if the request is async (that is one-way) we either inherit the transaction for the insert into the dehydration store (that is dlv_message in this case) or if one exists enlist transparently into it. So we guarantee you zero message loss. Either the invocation message is in the dehydration store, to be processed, or otherwise the consumer is notified via a fault.

One only needs to set the (new) transaction flag on the calee bpel component. This can be done in the composite editor's source by adding bpel.config.transaction into a bpel component - as shown below

  <component name="SampleProject">

    <implementation.bpel src="SampleProject.bpel"/>

    <property name="bpel.config.transaction"

         many="false" type="xs:string">required | requiresNew</property>

  </component>

The two possible values are

1> required, which makes BPEL inherit the tx that is already there, or if not creating a new one

2> requiresNew which makes BPEL suspending one if exists, and ALWAYS create a new one



Implications of setting the above (the default is requiresNew)

Case one - BPELCaller calls BPELCallee (the latter has requiresNew set)

a) BPELCallee replies (that is uses <reply>) with a fault: BPELCallee transaction is saved, BPELCaller get's the fault and can catch it.
b) BPELCallee throws (that is uses <throw>) a fault, that is NOT handled: BPELCallee tx get's rolled back, BPELCaller get's the fault and can catch it
c) BPELCallee replies back with a fault (FaultOne), and then throws a fault (FaultTwo): BPELCallee tx get's rolled back, and BPELCaller get's FaultOne
d) BPELCallee throws (that is uses <throw>) a bpelx:rollback fault: BPELCallee tx get's rolled back, BPELCaller get's a remote fault

Example:--

Create two processes (BPELMaster and BPELChild), both sync, each using the same db adapter reference that inserts the same record (and hence causes a PK violation). (And of course has set xADatasourceName). In this case



Once the fault occurs, and is not handled - the BPELChild will rollback. If the BPELMaster has a catch block his transaction will commit, so you end up with the record from the Master in the db.If you don't catch the fault in the master as well - you get a second rollback - two different transactions though.

Case two - BPELCaller calls BPELCallee (the latter has required set)
a) BPELCallee replies (that is uses <reply>) with a fault: BPELCaller get's the fault and can catch it, BPELCaller owns the transaction - hence if he catches it - tx is committed, if BPELCaller does not handle it - global rollback.
b) BPELCallee throws (that is uses <throw>) a fault BPELCaller get's the fault and can catch it
c) BPELCallee replies back with a fault (FaultOne), and then throws a fault (FaultTwo): BPELCaller get's FaultOne
d) BPELCallee throws (that is uses <throw>) a bpelx:rollback fault: BPELCaller tx get's rolled back, no way to catch it.

Example :--

Create two processes (BPELMaster and BPELChild), both sync, each using the same db adapter reference that inserts the same record (and hence causes a PK violation). (And of course has set xADatasourceName). In this case

 If no fault handlers are in place - the whole tx will rollback, based on the BPELMaster's unhandled fault.With a fault handler in the BPELMaster to catch the Fault from the BPELClient - and throw up a rollback fault. Globally the tx will rollback as well.

For more info: http://www.soabyte.com/2011/05/soa-suite-11g-transaction-semantics.html#ixzz2LL1f3t00

Return a fault from an Asynchronous Web Service

In an asynchronous web service we can't return a soap fault like a synchronous service but that does not mean you can't report back the fault to the calling asynchronous process.

basically you got three options.

• Off course handle the fault in the error hospital and give back the response.
• In the response message you can add a section ( a XSD choice with success and fault section) which can be used for faults.
• Do a callback to a common fault operation of the calling process. This can be a JMS message with the messageId/correlationId or a Web Service invocation where we use the correlation of BPEL to match the fault message with the right process.

In this blogpost I will show how to implement the last two options in Oracle BPEL.

First we start with returning the fault in a response message.

For this I added a status element to the response and a choice for a success and a fault .

In the catch section you can also invoke the callback response and in the Assign activity you can fill the fault section of the response message.

Do a fault callback to the calling process,  for this we need to do the following.

Create an Asynchronous BPEL process.

Define a fault response schema. The EmployeeId element is necessary, we need this for the correlation of the BPEL processes.

Then make a new WSDL with the fault callback operation and add a fake endpoint. ( we will override this endpoint from BPEL, because we don't know the endpoint of the calling process).

Add a FaultCallback reference web service based on this WSDL and add a wire to the BPEL process.

In the BPEL receive activity, we need to capture the fault callback url. We can optional use this for the fault response endpoint.  Go the properties tab and capture the value of the faultToAddress property. Put the value in the faultCallBackUrl variable.

In the Catch section of the BPEL process we can invoke the fault reference service. Off course use an assign to add the EmployeeId and provide a fault message.

Open the fault invoke activity and go to the properties tab.

We need to set the endpointURI property with the faultCallBackUrl variable value.

That is all for the Asynchronous Service.

Next step is to use this Asynchronous Fault Service in an other asynchronous BPEL process.

We need to make a WSDL ( contract first ) with a portType which also contains the fault operation, this must match with the reference WSDL of the Asynchronous Fault Process. So operationName, Message and namespace must match.

Create a new BPEL process which is based on this WSDL ( expose this BPEL as a service ) and also add wire the Asynchronous Fault process.

This is the process with InvokeEmployee activity which calls the Asynchronous Service.

Open this invoke activity and go to the properties tab where we set the faultToAddress property. This is the endpoint of this BPEL process and will be used for the fault callback.

After the invoke we need to use a pick activity and add an extra onMessage to the pick activity.
First OnMessage will be used for the normal callback situation.

The second will be used for the fault Response.

The last step is to setup correlation in this BPEL for the returning fault message.

on the receive add a correlation set and initiate this ( I got a NPE when I tried to set it on the invoke ). The Set is based on the employeeId element.

Add two Property Aliases , first is based on the employeeId element of the Fault Message and second is the employeeId of the request message.

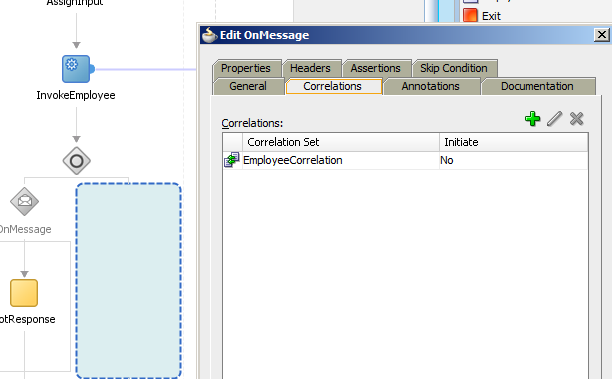

On the fault OnMessage we need to add the same correlation set and this time we don't need to initiate it.

If everything is Ok we will see the following in the Enterprise Manager.

on the invoke we set the faultToAddress, the normal response OnMessage is cancelled and the fault OnMessage gets a response with the fault message.

On github you can download this example https://github.com/biemond/soa11g_examples/tree/master/AsynchronousFaultHandling

Lets SOA Suite UMS do your Application Messaging

 With User Messaging Service you can let Soa Suite 11g do all your Messaging. And UMS can do a lot: like Email with Attachments, Instant Messaging (XMPP, like Google Talk), SMS Text messages (SMPP), Fax or Voice Messages and deliver messages to the Soa & Webcenter Task List. Besides this, UMS keeps track of delivery status information provided by messaging gateways and makes this information available to applications so that they can respond to a failed delivery.
In Patch Set 2 of Soa Suite 11g Oracle added a simple java API for UMS and in this blogpost I will use this API in a EJB Session Bean with a Remote Interface and also expose this Session Bean as a Web Service. This Session Bean & Web Service can be used in your custom applications so you don't need to have or build your own messaging methods because Soa Suite can do more and much better and even keeps track of your messages. Just call the Web Service or the Session Bean, deliver a list of Receivers with names and the media delivery type and it will return a MessageId with this you can check the status of your send messages.

In this blogpost I will use the email and instant messaging driver to deliver my messages. And as a demo I can send email attachements, deliver a message to IM and Email Client. ( Multi part Message , plain text part for IM and HTML part for Email ) and at last get retrieve the status of these messages. And you can use this in SoapUI, a web service proxy or in a EJB java client.

First you need to enable and configure the UMS Email and Instant Messaging Driver ( XMPP).
Go to the Weblogic console of your Soa Domain probably http://xxxxx:7001/console and select the XMPP UMS driver and go the the target tab and enable the Soa servers or soa cluster.

You need to reboot the Soa Server managed Servers.
In the User Messaging Service part of the Enterprise Manager Website http://xxxx:7001/em you can select the xmpp driver and go the XMPP Driver Properties.

In my case I will use Google Talk as IM service. Provide the server and a Talk user account.

Do the Same for your UMS Email driver. Provide the SMTP server.

And enable all the Work Flow communications in the WorkFlow Notifications Properties page of the Soa Infrastructure part..

You need to reboot the Soa Server managed Servers.

Now you can go to the developer part and create a JDeveloper project and add an new Application. Your project needs to have the UMS library located at jdeveloper\communications\modules\oracle.sdp.messaging_11.1.1\sdpmessaging.jar and your application also needs to have a reference to the oracle.sdp.messaging shared library. Do this in the weblogic-application.xml.
This EJB / WS needs to deployed on the Soa Suite Managed Servers.

To make things more simple I made two entities Receiver and Status.
The Receiver just needs an email address and type ( EMAIL or IM )

1. package nl.whitehorses.soa.ums.entities;
2.
3. import java.io.Serializable;
4.
5. public class Receiver implements Serializable{
6.     public Receiver() {
7.
8.     }
9.
10.     private String receiver;
11.     private String channel;
12.
13.     public Receiver(String receiver, String channel) {
14.         super();
15.         this.receiver = receiver;
16.         this.channel = channel;
17.     }
18.
19.     public void setReceiver(String receiver) {
20.         this.receiver = receiver;
21.     }
22.
23.     public String getReceiver() {
24.         return receiver;
25.     }
26.
27.     public void setChannel(String channel) {
28.         this.channel = channel;
29.     }
30.
31.     public String getChannel() {
32.         return channel;
33.     }
34. }

The Status entity gives some simple info about the send messages.

1. package nl.whitehorses.soa.ums.entities;
2.
3. import java.io.Serializable;
4. import java.util.Date;
5.
6. public class Status implements Serializable {
7.     public Status() {
8.     }
9.
10.     private String messageId;
11.     private Date   sendTime;
12.     private String receiver;
13.     private String status;
14.
15.     public Status(String messageId, Date sendTime, String receiver,
16.                   String status) {
17.         super();
18.         this.messageId = messageId;
19.         this.sendTime = sendTime;
20.         this.receiver = receiver;
21.         this.status = status;
22.     }
23.
24.     public void setMessageId(String messageId) {
25.         this.messageId = messageId;
26.     }
27.
28.     public String getMessageId() {
29.         return messageId;
30.     }
31.
32.     public void setSendTime(Date sendTime) {
33.         this.sendTime = sendTime;
34.     }
35.
36.     public Date getSendTime() {
37.         return sendTime;
38.     }
39.
40.     public void setReceiver(String receiver) {
41.         this.receiver = receiver;
42.     }
43.
44.     public String getReceiver() {
45.         return receiver;
46.     }
47.
48.     public void setStatus(String status) {
49.         this.status = status;
50.     }
51.
52.     public String getStatus() {
53.         return status;
54.     }
55.
56.     public String toString() {
57.       return "message id: "+ messageId+" time: "+sendTime.toString()+ " status: " +status + " receiver: " + receiver;
58.     }
59. }

Here the main code with three method sendMailAttachmentMsg, sendMixedMsg and getMessageStatus.
The sendMailAttachmentMsg method will only send Mail with Attachments and sendMixedMsg method can send messages to Google Talk and Email, it depends on the receivers and getMessageStatus returns the Statusses of the send messages.

1. package nl.whitehorses.soa.ums.services;
2.
3.
4. import javax.ejb.Remote;
5. import javax.ejb.Stateless;
6.
7. import java.util.HashMap;
8. import java.util.Map;
9.
10. import java.util.ArrayList;
11. import java.util.List;
12.
13. import javax.activation.DataHandler;
14.
15. import javax.jws.WebMethod;
16. import javax.jws.WebParam;
17. import javax.jws.WebResult;
18. import javax.jws.WebService;
19.
20. import javax.mail.internet.MimeBodyPart;
21. import javax.mail.internet.MimeMultipart;
22.
23. import nl.whitehorses.soa.ums.entities.Receiver;
24. import nl.whitehorses.soa.ums.utilities.ReceiverConvertor;
25.
26. import oracle.sdp.messaging.Address;
27. import oracle.sdp.messaging.ApplicationInfo;
28. import oracle.sdp.messaging.DeliveryType;
29. import oracle.sdp.messaging.Message;
30. import oracle.sdp.messaging.MessagingFactory;
31. import oracle.sdp.messaging.MessagingClient;
32. import oracle.sdp.messaging.MessagingClientFactory;
33. import oracle.sdp.messaging.MessagingException;
34. import oracle.sdp.messaging.Status;
35. import oracle.sdp.messaging.util.ByteArrayDataSource;
36. import oracle.sdp.messaging.util.StringDataSource;
37.
38. @Stateless(name="SessionEJB", mappedName = "SoaUMSMessaging-SessionEJB")
39. @Remote
40. @WebService(name        = "UMSMessagingService",
41.             serviceName = "UMSMessagingService",
42.             portName    = "UMSMessagingServicePort")
43. public class SessionEJBBean implements SessionEJB {
44.
45.     MessagingClient mClient = null;
46.     Map<String, Object> params = new HashMap<String, Object>();
47.
48.     public SessionEJBBean() {
49.       params.put(ApplicationInfo.APPLICATION_NAME, "CompanyMsgr");
50.       params.put(ApplicationInfo.APPLICATION_INSTANCE_NAME, "CompanyInstance");
51.     }
52.
53.     @WebMethod
54.     @WebResult(name = "messageId")
55.     public String sendMailAttachmentMsg(
56.                                         @WebParam(name = "sender")    String sender,
57.                                         @WebParam(name = "receivers") List<Receiver> receivers,
58.                                         @WebParam(name = "subject")   String subject,
59.                                         @WebParam(name = "message")   String message,
60.                                         @WebParam(name = "data") byte[] data,
61.                                         @WebParam(name = "mimetype") String mimetype,
62.                                         @WebParam(name = "filename") String fileName) {
63.
64.       MimeMultipart mp = null;
65.
66.       try {
67.           // plain msg for the body
68.           MimeBodyPart mp_partPlain = new MimeBodyPart();
69.           mp_partPlain.setText(message);
70.
71.           // binary attachement
72.           MimeBodyPart mp_partBinary = new MimeBodyPart();
73.           ByteArrayDataSource dataSource = new ByteArrayDataSource(data, mimetype);
74.           mp_partBinary.setDataHandler(new DataHandler(dataSource));
75.           mp_partBinary.setFileName(fileName);
76.
77.           mp = new MimeMultipart("alternative");
78.           mp.addBodyPart(mp_partPlain);
79.           mp.addBodyPart(mp_partBinary);
80.
81.       } catch (javax.mail.MessagingException e) {
82.           e.printStackTrace();
83.       }
84.
85.         try {
86.           Message soaMessage = MessagingFactory.createMessage();
87.           Address soaSender =
88.               MessagingFactory.buildAddress(sender,
89.                                             DeliveryType.EMAIL,
90.                                             null);
91.
92.           soaMessage.setSubject(subject);
93.           soaMessage.setContent(mp, "multipart/alternative");
94.
95.           soaMessage.addSender(soaSender);
96.           soaMessage.addAllRecipients(ReceiverConvertor.convertReceiver(receivers));
97.
98.           mClient = MessagingClientFactory.createMessagingClient(params);
99.           String messageId = mClient.send(soaMessage);
100.           return messageId;
101.
102.         } catch (MessagingException e) {
103.              e.printStackTrace();
104.         }
105.
106.         return null;
107.     }
108.
109.
110.     @WebMethod
111.     @WebResult(name = "statusses")
112.     public List<nl.whitehorses.soa.ums.entities.Status> getMessageStatus(
113.             @WebParam(name = "messageId") String messageId) {
114.
115.         try {
116.             mClient = MessagingClientFactory.createMessagingClient(params);
117.             Status[] msgStatuses = mClient.getStatus(messageId);
118.             List<nl.whitehorses.soa.ums.entities.Status> statusses =
119.                 new ArrayList<nl.whitehorses.soa.ums.entities.Status>();
120.
121.             for (Status msgStatus : msgStatuses) {
122.                 nl.whitehorses.soa.ums.entities.Status status =
123.                     new nl.whitehorses.soa.ums.entities.Status();
124.                 status.setMessageId(msgStatus.getMessageId());
125.                 status.setReceiver(msgStatus.getAddress().toString());
126.                 status.setStatus(msgStatus.getType().toString());
127.                 status.setSendTime(msgStatus.getDate().getTime());
128.                 statusses.add(status);
129.             }
130.             return statusses;
131.         } catch (MessagingException e) {
132.             e.printStackTrace();
133.         }
134.         return null;
135.     }
136.
137.     @WebMethod
138.     @WebResult(name = "messageId")
139.     public String sendMixedMsg(@WebParam(name = "subject") String subject,
140.                                @WebParam(name = "message") String message,
141.                                @WebParam(name = "sender") String sender,
142.                                @WebParam(name = "receivers") List<Receiver> receivers) {
143.
144.
145.         Message soaMessage = MessagingFactory.createMessage();
146.         MimeMultipart part_mp = null;
147.
148.         try {
149.           // IM Message
150.           MimeBodyPart part_mp_partPlain = new MimeBodyPart();
151.           // set IM
152.           part_mp_partPlain.addHeader(soaMessage.HEADER_SDPM_PAYLOAD_PART_DELIVERY_TYPE,
153.                                       "IM");
154.           part_mp_partPlain.setText(message);
155.
156.           // Email Message
157.           MimeBodyPart part_mp_partRich = new MimeBodyPart();
158.           // set Email
159.           part_mp_partRich.addHeader(soaMessage.HEADER_SDPM_PAYLOAD_PART_DELIVERY_TYPE,
160.                                      "EMAIL");
161.           StringDataSource htmlDataSource =
162.               new StringDataSource("<html><head></head><body><b><i>"+
163.                                    message+
164.                                    "</i></b></body></html>",
165.                                    "text/html; charset=UTF-8");
166.           part_mp_partRich.setDataHandler(new DataHandler(htmlDataSource));
167.
168.           part_mp = new MimeMultipart("alternative");
169.           part_mp.addBodyPart(part_mp_partPlain);
170.           part_mp.addBodyPart(part_mp_partRich);
171.
172.         } catch (javax.mail.MessagingException b) {
173.               b.printStackTrace();
174.         }
175.
176.
177.         try {
178.             mClient = MessagingClientFactory.createMessagingClient(params);
179.
180.             soaMessage.setSubject(subject);
181.             soaMessage.setContent(part_mp, "multipart/alternative");
182.             // Enabled for IM and Email
183.             soaMessage.setMultiplePayload(true);
184.
185.             Address soaSender = MessagingFactory.buildAddress(sender,
186.                                                               DeliveryType.EMAIL,
187.                                                               null);
188.
189.             soaMessage.addSender(soaSender);
190.             soaMessage.addAllRecipients(ReceiverConvertor.convertReceiver(receivers));
191.
192.             String messageId = mClient.send(soaMessage);
193.             return messageId;
194.         } catch (oracle.sdp.messaging.MessagingException b) {
195.             b.printStackTrace();
196.         }
197.         return null;
198.     }
199.
200. }

My EJB test client

1. package nl.whitehorses.soa.ums;
2.
3. import java.io.FileInputStream;
4. import java.io.FileNotFoundException;
5.
6. import java.io.IOException;
7.
8. import java.nio.ByteBuffer;
9. import java.nio.channels.FileChannel;
10.
11. import java.util.ArrayList;
12. import java.util.Hashtable;
13.
14. import java.util.List;
15.
16. import javax.naming.Context;
17. import javax.naming.InitialContext;
18. import javax.naming.NamingException;
19.
20. import nl.whitehorses.soa.ums.entities.Receiver;
21. import nl.whitehorses.soa.ums.entities.Status;
22. import nl.whitehorses.soa.ums.services.SessionEJB;
23.
24. public class SessionEJBClient {
25.     public static void main(String[] args) {
26.         try {
27.             final Context context = getInitialContext();
28.             SessionEJB sessionEJB =
29.                 (SessionEJB)context.lookup("SoaUMSMessaging-SessionEJB#nl.whitehorses.soa.ums.services.SessionEJB");
30.
31.             List<Receiver> receivers = new ArrayList<Receiver>();
32.             Receiver receiver  = new Receiver("xxx@gmail.com", "EMAIL");
33.             Receiver receiver2 = new Receiver("xxxx@tiscali.nl", "EMAIL");
34.             receivers.add(receiver);
35.             receivers.add(receiver2);
36.
37.
38.
39.             String messageId =
40.                 sessionEJB.sendMailAttachmentMsg( "xxxx@xs4all.nl",
41.                                                    receivers,
42.                                                    "hello subject",
43.                                                    "hello body"
44.                                                    ,doDownload("C:/temp/logo.png"),
45.                                                    "image/png",
46.                                                    "logo.png");
47.
48.             System.out.println("MessageId is " + messageId +
49.                                " lets wait 2 seconds for the status");
50.             Thread.sleep(2000);
51.
52.             if (messageId != null) {
53.               List<Status> statusses =
54.                   sessionEJB.getMessageStatus(messageId);
55.               for (Status status : statusses) {
56.                   System.out.println(status.toString());
57.               }
58.             }
59.
60.
61.             Receiver receiver3 = new Receiver("nl2en@bot.talk.google.com", "IM");
62.             receivers.add(receiver3);
63.
64.             messageId = sessionEJB.sendMixedMsg("Hello",
65.                                                 "Hello world",
66.                                                 "xxxx@xs4all.nl",
67.                                                 receivers );
68.
69.
70.             System.out.println("MessageId is " + messageId +
71.                                " lets wait for the status");
72.             Thread.sleep(4000);
73.
74.             if (messageId != null) {
75.                 List<Status> statusses =
76.                     sessionEJB.getMessageStatus(messageId);
77.                 for (Status status : statusses) {
78.                     System.out.println(status.toString());
79.                 }
80.             }
81.
82.         } catch (Exception ex) {
83.             ex.printStackTrace();
84.         }
85.     }
86.
87.     private static Context getInitialContext() throws NamingException {
88.         Hashtable env = new Hashtable();
89.         env.put(Context.INITIAL_CONTEXT_FACTORY,
90.                 "weblogic.jndi.WLInitialContextFactory");
91.         env.put(Context.PROVIDER_URL, "t3://localhost:8001");
92.         return new InitialContext(env);
93.     }
94.
95.     public static byte[] doDownload(String fileName) {
96.         FileInputStream fis;
97.         byte[] data = null;
98.         FileChannel fc;
99.
100.         try {
101.             fis = new FileInputStream(fileName);
102.             fc = fis.getChannel();
103.             data = new byte[(int)(fc.size())];
104.             ByteBuffer bb = ByteBuffer.wrap(data);
105.             fc.read(bb);
106.         } catch (FileNotFoundException e) {
107.             // TODO
108.         } catch (IOException e) {
109.             // TODO
110.         }
111.         return data;
112.     }
113. }

If you send messages with this EJB Session or WS then you can take a look at the application client in the UMS service overview.

Here you can download  Edwin Biemondworkspace
